EKOM DK50-10 DENTAL COMPRESSOR

DISCOVER MORE ABOUT THE EKOM DK50-10

EKOM DK50-10

The EKOM DK50-10 compressor delivers clean, oil-free compressed air. Designed to run a single chair or other dental equipment.

The low noise compact compressor delivers 75 litres / min at 5 bar and works within a pressure range of 6-8 bar.

  • Suitable for 1 dental chair
  • 75 L/min @ 5 bar (without dryer)
  • 58 L/min @ 5 bar (with MD dryer)
  • 10 L tank
  • Self-contained – Auto drain fitted as standard
  • Internally coated tank
  • HTM 02 01 / HTM 20 22 Compliant

The DK50- 10 Z is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level without the box is 65 dB(A). This unit is 100% duty and extremely easy to install with quick connect air couplings.

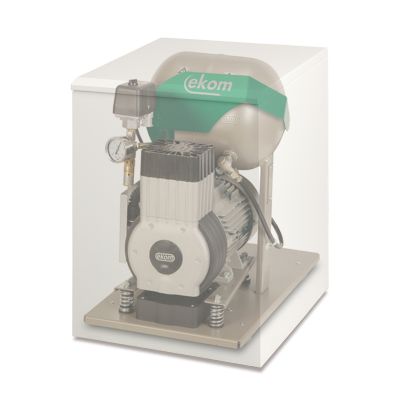

The DK50- 10 S is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level with the box is 49.5 dB(A). This unit is 100% duty and extremely easy to install with quick connect air couplings.

The DK50- 10 Z/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point (+3 pressure dew point). This unit is 100% duty and extremely easy to install with quick connect air couplings.

A dryer is always recommended within dental.

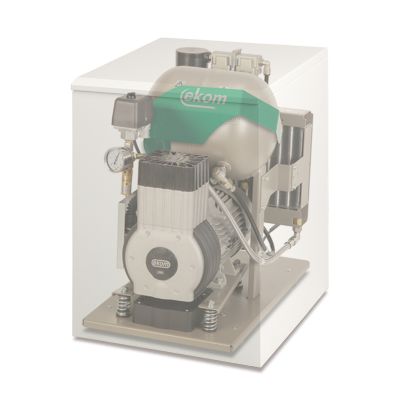

The DK50- 10 S/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point (+3 pressure dewpoint) and the soundproof cabinet with reduce the noise level to 51.5 dB(A). This unit is 100% duty and extremely easy to install with quick connect air couplings.

Highly recommended, as you can position the compressor almost anywhere due to the noise level and the quality of the air complies with HTM 02 01.

Technical Specification Chart

here will be a table

S = Soundproof Cabinet       M = Dryer      MD = Membrane Dryer
