EKOM DK50 2V DENTAL COMPRESSOR

DISCOVER MORE ABOUT THE EKOM DK50 2V

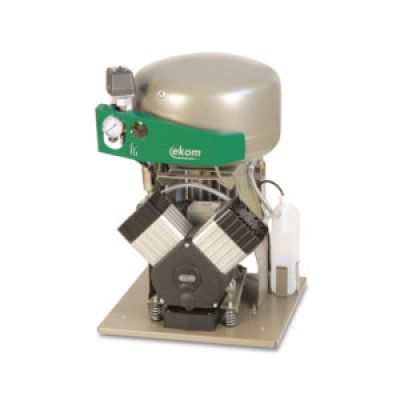

EKOM DK50 2V

The EKOM DK50 2V compressor delivers clean, oil-free compressed air. Designed to run between 2-3 dental chairs or other dental equipment. The low noise compact compressor delivers 140 litres / min at 5 bar and works within a pressure range of 6-8 bar.

  • Suitable for 2-3 dental chairs
  • 140 L/min @ 5 bar (without dryer)
  • 110 L/min @ 5 bar (with NPSL dryer)
  • 25 L tank
  • Self-contained – Auto drain fitted as standard
  • Internally coated tank
  • HTM 02 01 / HTM 20 22 Compliant

The DK50 2V is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level without the box is 71 dB(A). This unit is 100% duty and extremely easy to install.

25L tank allows for 2-3 dental chairs

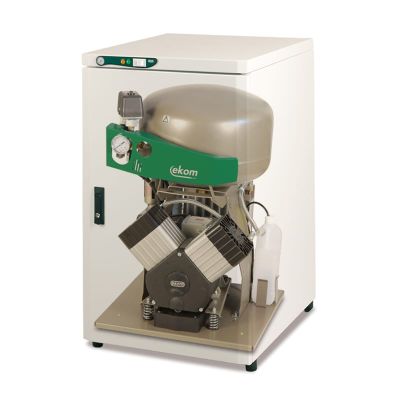

The DK50 2V S is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level with the box is 53 dB(A). This unit is 100% duty and extremely easy to install.

Perfect to be placed within the surgery.

The DK50- 2V/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point (+3 pressure dewpoint). The NPSL dryer will deliver a -40 pressure dew point. This unit is 100% duty and extremely easy to install

A dryer is always recommended within dental. Either dryer option will comply with HTM 02 01.

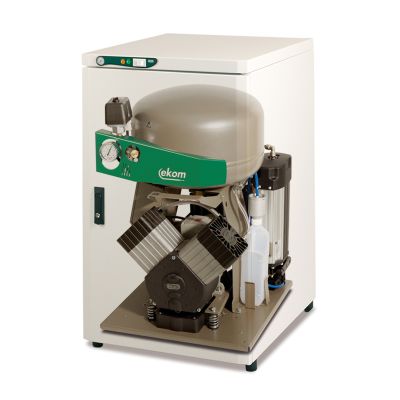

The DK50- 2V S/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point (+3 pressure dewpoint), whereas the NPSL dryer will deliver a -40 pressure dewpoint. The soundproof cabinet with reduce the noise level to 53 dB(A). This unit is 100% duty and extremely easy to install.

Highly recommended, as you can position the compressor almost anywhere due to its low noise level and the air quality complies with HTM 02 01.

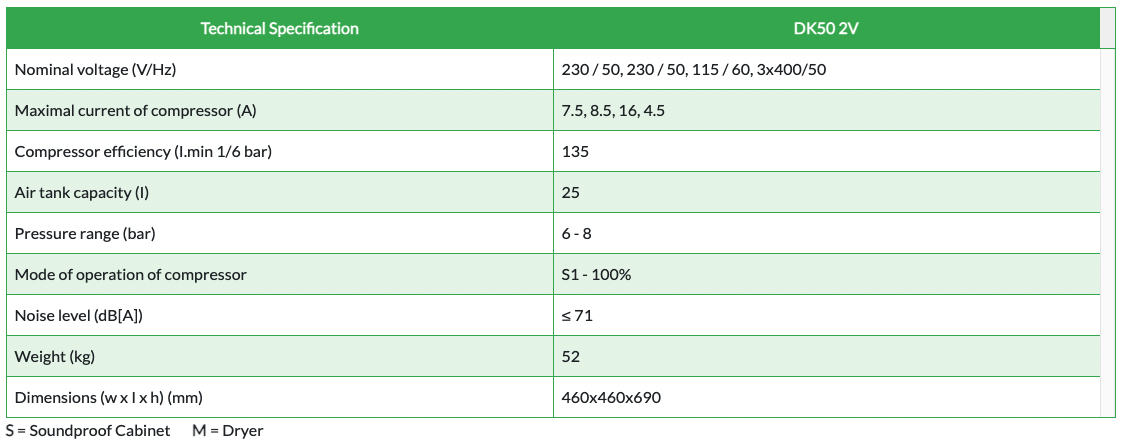

Technical Specification Chart

here will be a table

*Part of the efficiency of compressor is used for regeneration of the dryer. Technical modifications are subject to change.

S = Soundproof Cabinet       M = Dryer
