EKOM DK50 PLUS DENTAL COMPRESSOR

DISCOVER MORE ABOUT THE EKOM DK50 PLUS

EKOM DK50 PLUS

The EKOM DK50 PLUS compressor delivers clean, oil-free compressed air. Designed to run between 1-2 dental chairs or other dental equipment. The low noise compact compressor delivers 75 litres / min at 5 bar and works within a pressure range of 6-8 bar.

  • Suitable for 1-2 dental chairs
  • 75 L/min @ 5 bar (without dryer)
  • 60 L/min @ 5 bar (with MD or NPSL dryer)
  • 25 L tank
  • Self-contained – Auto drain fitted as standard
  • Internally coated tank
  • HTM 02 01 / HTM 20 22 Compliant

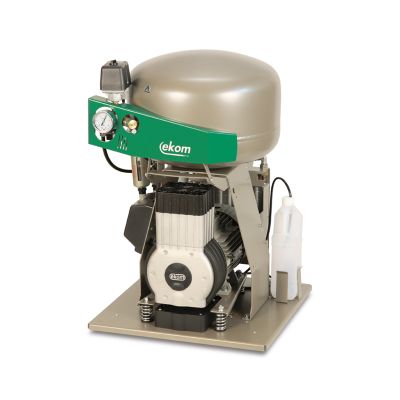

The DK50 PLUS is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level without the box is 66 dB(A). This unit is 100% duty and extremely easy to install with quick connect air couplings.

25L tank allows for 2 dental chairs

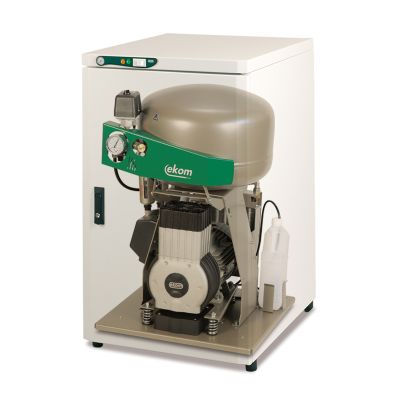

The DK50 PLUS S is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level with the box is 47 dB(A). This unit is 100% duty and extremely easy to install with quick connect air couplings.

Perfect to be placed within the surgery.

The DK50- PLUS/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point (+3 pressure dewpoint). The NPSL dryer will deliver a -40 pressure dewpoint. This unit is 100% duty and extremely easy to install

A dryer is always recommended within dental. Either dryer option will comply with HTM 02 01.

The DK50- PLUS S/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point (+3 pressure dewpoint), whereas the NPSL dryer will deliver a -40 pressure dew point. The soundproof cabinet with reduce the noise level to 51.5 dB(A). This unit is 100% duty and extremely easy to install.

Highly recommended, as you can position the compressor almost anywhere due to the noise level and the quality of the air complies with HTM 02 01.

Technical Specification Chart

here will be a table

*Part of the efficiency of compressor is used for regeneration of the dryer. Technical modifications are subject to change.

S = Soundproof Cabinet       M = Dryer
