EKOM DK50 TOWER DENTAL COMPRESSION SYSTEM

DISCOVER MORE ABOUT THE EKOM DK50 TOWER SYSTEM

EKOM DK50 TOWER SYSTEM

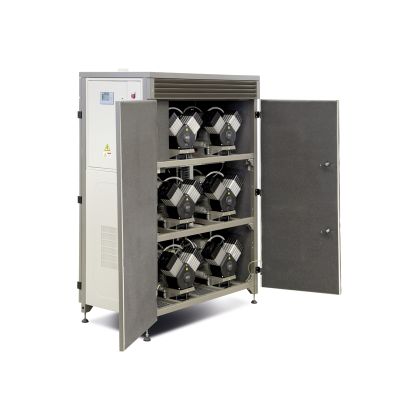

The EKOM DK50 6x4VRT TOWER system delivers clean, oil-free compressed air. Designed to run 16+ dental chairs or other dental equipment.

The low noise compact compressor delivers 1615 litres / min at 5 bar and works within a pressure range of 6-8 bar.



  • Suitable for 16+ dental chairs
  • Centralised System
  • 6 synchronised running motors
  • 1615 L/min @ 5 bar
  • 500 L tank
  • Refrigeration or NPSL dryer option
  • 415V/3PH/50Hz Power supply required
  • Internally coated tank
  • HTM 02 01 / HTM 20 22 Compliant

The DK50 6x4VRT/M has 6 independently running pumps that can adjust depending on the demand. It has a Siemens control panel that can monitor all aspects of the tower, from pressure regulation to dew point. This can all be viewed via the LED touch screen display or remotely via BMS system.

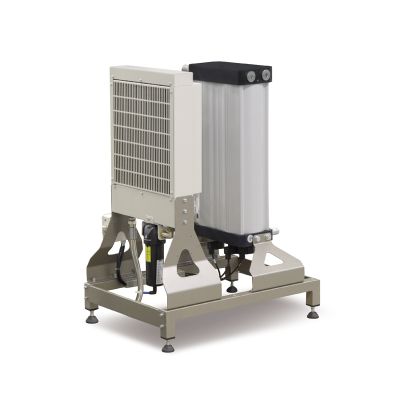

This unit is available with 2 dryer options. Refrigeration will provide a -20 dew point(+3 pressure dewpoint), compared to the NPSL dryer which will deliver a -40 pressure dewpoint.

The decibel level without the box is 83dB(A) – Ideal for a plant room.

Please note this unit requires 3 phase power supply.

The DK50 6x4VRT/M has 6 independently running pumps that can adjust depending on the demand. It has a Siemens control panel that can monitor all aspects of the tower, from pressure regulation to dew point. This can all be viewed via the LED touch screen display or remotely via BMS system.

This unit is available with 2 dryer options. Refrigeration will provide a -20 dew point (+3 pressure dewpoint), compared to the NPSL dryer which will deliver a -40 pressure dewpoint.

Adding the soundproof box will reduce the decibel level to 72dB(A) It has a high quality cooling system within the cabinet to help the pumps run at optimum temperature.

Please note this unit requires 3 phase power supply.

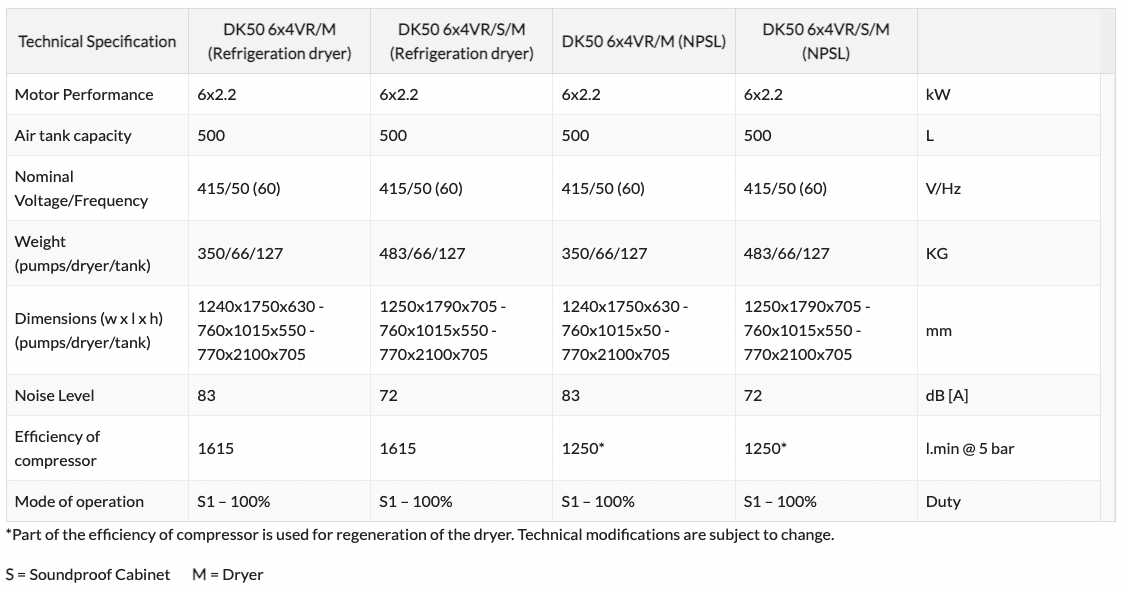

Technical Specification Chart

here will be a table

*Part of the efficiency of compressor is used for regeneration of the dryer. Technical modifications are subject to change.

S = Soundproof Cabinet       M = Dryer

Technical Graphs
